Meraki: Preschool Infrastructure Dashboard

Meraki is an nonprofit based in Northern India that partner with state government to provide stable learning environments and improve school conditions. I collaborated on a team of developers and a product manager to build a dashboard for policymakers to see preschool data in a digestible and impactful way. Our goal was to design a dashboard for users who may not be as technically skilled, but still gain the needed information to provide impactful support.

ROLE

Product Designer

TEAM

Product Manager

Tech Lead

5 Developers

DURATION

4 Months

TOOLS

Figma

Gitbub

Miro

Context

Educational Disparities Across Regions

Across regions in Northern India, there are varying educational environments facing disparities that put children from less supported areas at a disadvantage.

There are varying educational environments across Northern India facing disparities that put children from less supported areas at a disadvantage.

Across regions in Northern India, there are varying educational environments facing disparities that put children from less supported areas at a disadvantage.

May lack basic needs in their educational spaces, hurting their developmental success.

May lack basic needs in their educational spaces, hurting their developmental success.

The Problem

Policymakers Struggle Providing Aid

Without records and management of school conditions, budgeting and proper school aid is ineffective, inaccurate, and harmful to children developmental success.

Without records and management of school conditions, budgeting for school aid is ineffective, inaccurate.

Without records and management of school conditions, budgeting and proper school aid is ineffective, inaccurate, and harmful to children developmental success.

With these insights, we found our key goals:

🏦

STRUGGLE OVERSEEING BUDGET

👯‍♀️ GROUPING & CONTEXT

STRUGGLE OVERSEEING BUDGET

Data on infrastructure requiring funding is insufficient. Policymakers lack clarity on regional budget allocation across infrastructure types.

Grouping & context on how products relate to each other across the services Synchrony manages.

Grouping & context on how products relate to each other across the services Synchrony manages.

📉

POOR DATA MANAGMENT

🫶 PROVIDE A FAMILAR EXPERIENCE

POOR DATA MANAGMENT

Current data collection relies on Google Form inputs and is managed in a Excel table prone to input errors and requires frequent data cleaning.

Grouping & context on how products relate to each other across the services Synchrony manages.

Grouping & context on how products relate to each other across the services Synchrony manages.

📠

NOT TECH SAVVY

🆕 BALANCE VISUALS & EFFICIENCY

NOT TECH SAVVY

With a dated system, we found our target users my lack the familiarity with traditional dashboard visualizations and navigation.

Grouping & context on how products relate to each other across the services Synchrony manages.

Grouping & context on how products relate to each other across the services Synchrony manages.

This results in a lack of expenditure planning, making it harder for them to effectively manage AWCs, Anganwadis–or preschools, in their region.

Our Goal

“How might we help government officials improve decision-making and resource allocation based on actionable insight to effectively manage schools?”

Our Goal

“How might we help government officials improve decision-making and resource allocation based on actionable insight to effectively manage schools?”

Our Goal

“How might we help government officials improve decision-making and resource allocation based on actionable insight to effectively manage schools?”

Our Goal

“How might we help government officials improve decision-making and resource allocation based on actionable insight to effectively manage schools?”

The Solution

Preschools Infrastructure Dashboard 🏫

Preschools Infrastructure Dashboard

Preschools Infrastructure Dashboard 🏫

Parivartan is a dashboard that supports data collection and synthesis that serves as a place officials can see school infrastructure status/ratings across regions to target specific budget needs.

A dashboard that supports data collection and synthesis. Officials can see school infrastructure status/ratings across regions to target specific budget needs.

Parivartan is a dashboard that supports data collection and synthesis that serves as a place officials can see school infrastructure status/ratings across regions to target specific budget needs.

Iteration

Key Changes from User Insights

Preschools Infrastructure Dashboard

Key Changes from User Insights

A large challenge was making the preschool data simple and easy to take action on for government officials.

We Found That…

While traditional dashboard navigation and data visuals are industry standard, our main users were not familiar with these features.

We Found That…

While traditional dashboard navigation and data visuals are industry standard, our main users were not familiar with these features.

We Found That…

While traditional dashboard navigation and data visuals are industry standard, our main users were not familiar with these features.

We Found That…

While traditional dashboard navigation and data visuals are industry standard, our main users were not familiar with these features.

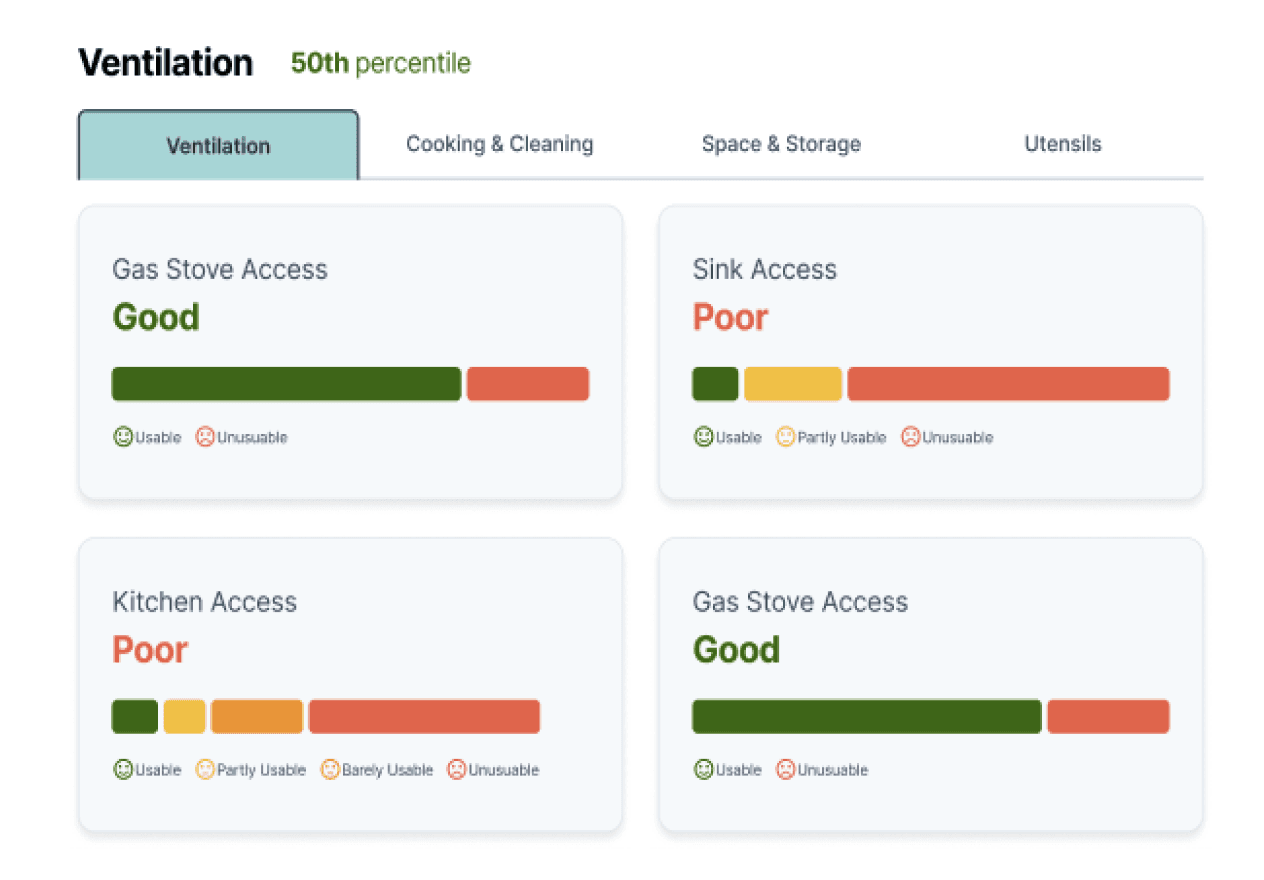

Amenity Health Card

Before

Confusing to understand the representative parts

After

Increased understanding and comparison of useable facilities

Confusing to understand

the representative parts

Confusing to understand the representative parts

Increased understanding and

comparison of useable facilities

Our original data visuals were traditional donut/pie charts, but we found these designs confusing for users to understand the representative parts. Instead we opted to a more bar format which helped 90% of users understand the distribution and comparison of usable facilities.

Our original data visuals were traditional donut/pie charts, but we found these designs confusing for users to understand the representative parts.

Instead we opted to a more bar format which helped 90% of users understand the distribution and comparison of usable facilities.

Facility Status Card

Emphasizing the wrong

element of the card

Appearing less significant

because of low hierarchy

Appearing less significant because of low hierarchy

Before

Learning & Growth

10th percentile

Emphasizing the wrong element of the card

Emphasized the percentile &

color indicator

Emphasized the percentile & color indicator

Joined visual & title for context

Joined visual & title

for context

After

Emphasized the percentile & color indicator

The Facility Status Cards had poor hierarchy emphasizing the wrong information. The icon was used as an visual anchor , but this took away from the most important information being the percentile. Thus, we shifted the icon up to the title and increased the percentile with both size and the supporting status color.

The Facility Status Cards had poor hierarchy emphasizing the wrong information. The icon was used as an visual anchor , but this took away from the most important information being the percentile.

Thus, we shifted the icon up to the title and increased the percentile with both size and the supporting status color.

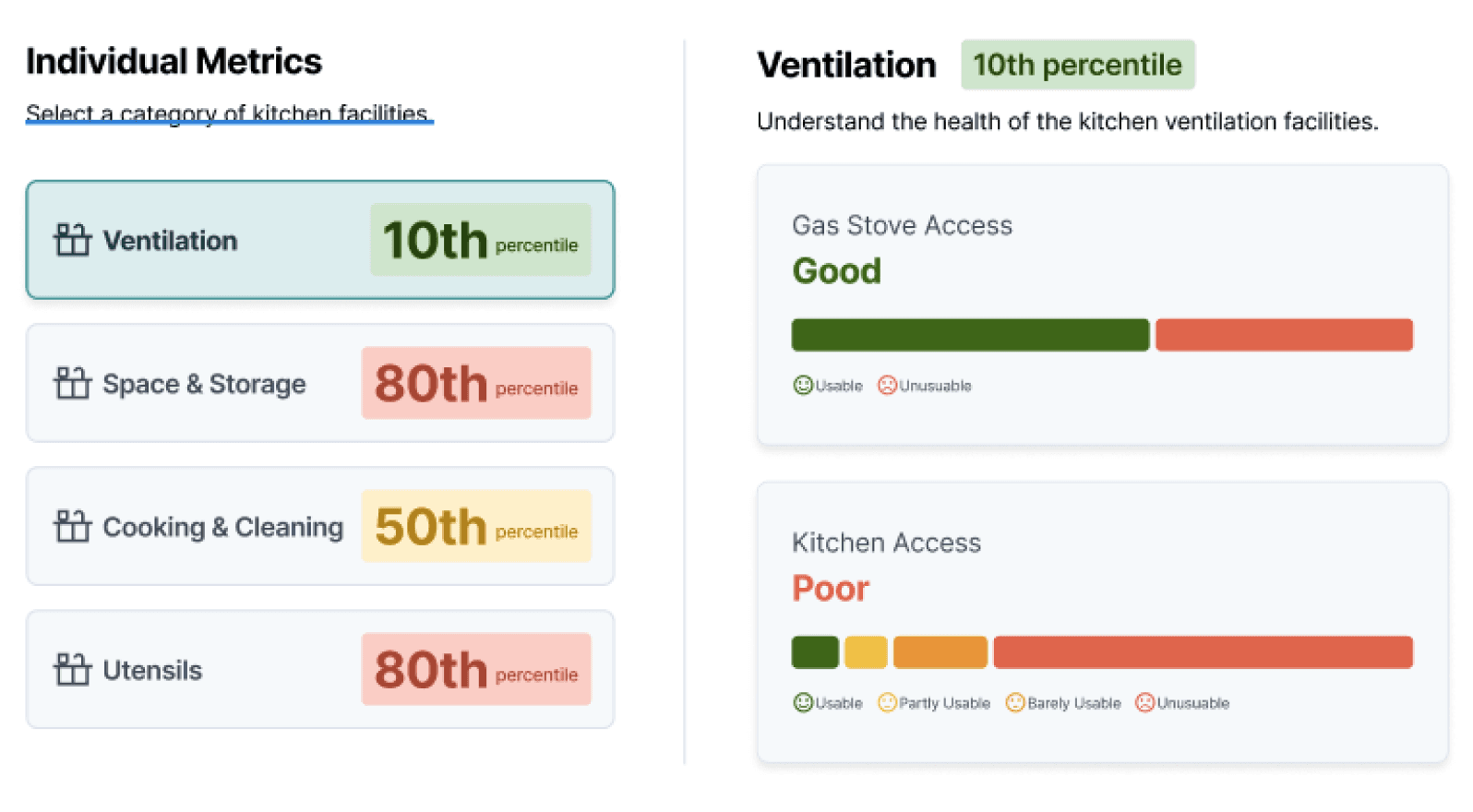

Sub-Category Navigation

Before

Small and lacks the significant

percentile information

Small and lacks the significant percentile information.

After

Larger tab area & percentile

Larger tab area & percentile.

Sub-categories originally were tabs reminiscent of excel/sheets, but users found it too small and preferred seeing the percentile as a preview into subcategory information. We shifted the tabs to the side and brought more emphasis to the percentile in both the card and subcategory heading.

The Facility Status Cards had poor hierarchy emphasizing the wrong information. The icon was used as an visual anchor , but this took away from the most important information being the percentile.

Thus, we shifted the icon up to the title and increased the percentile with both size and the supporting status color.

Core Experience

Key Features

Dashboard Overview

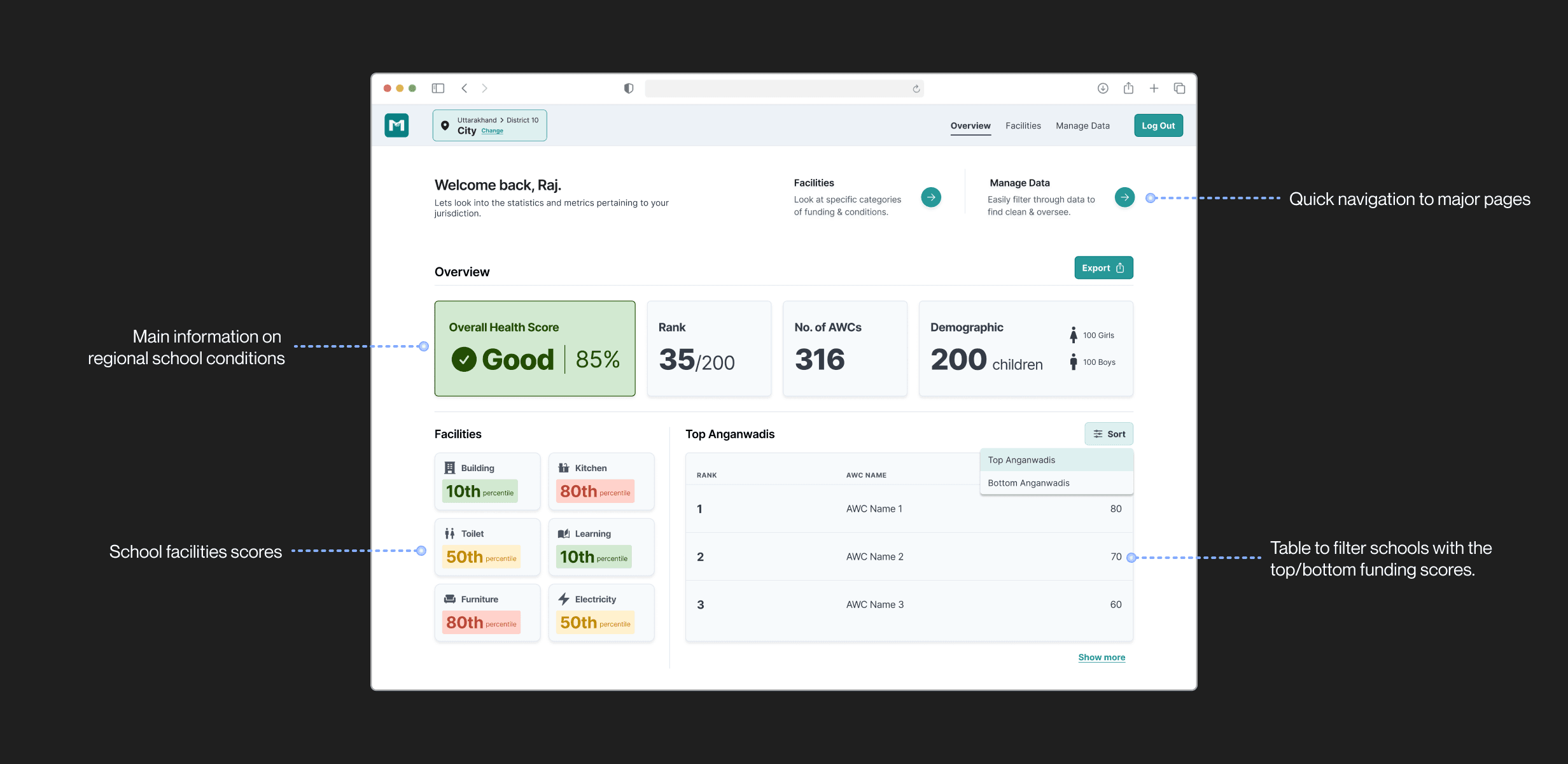

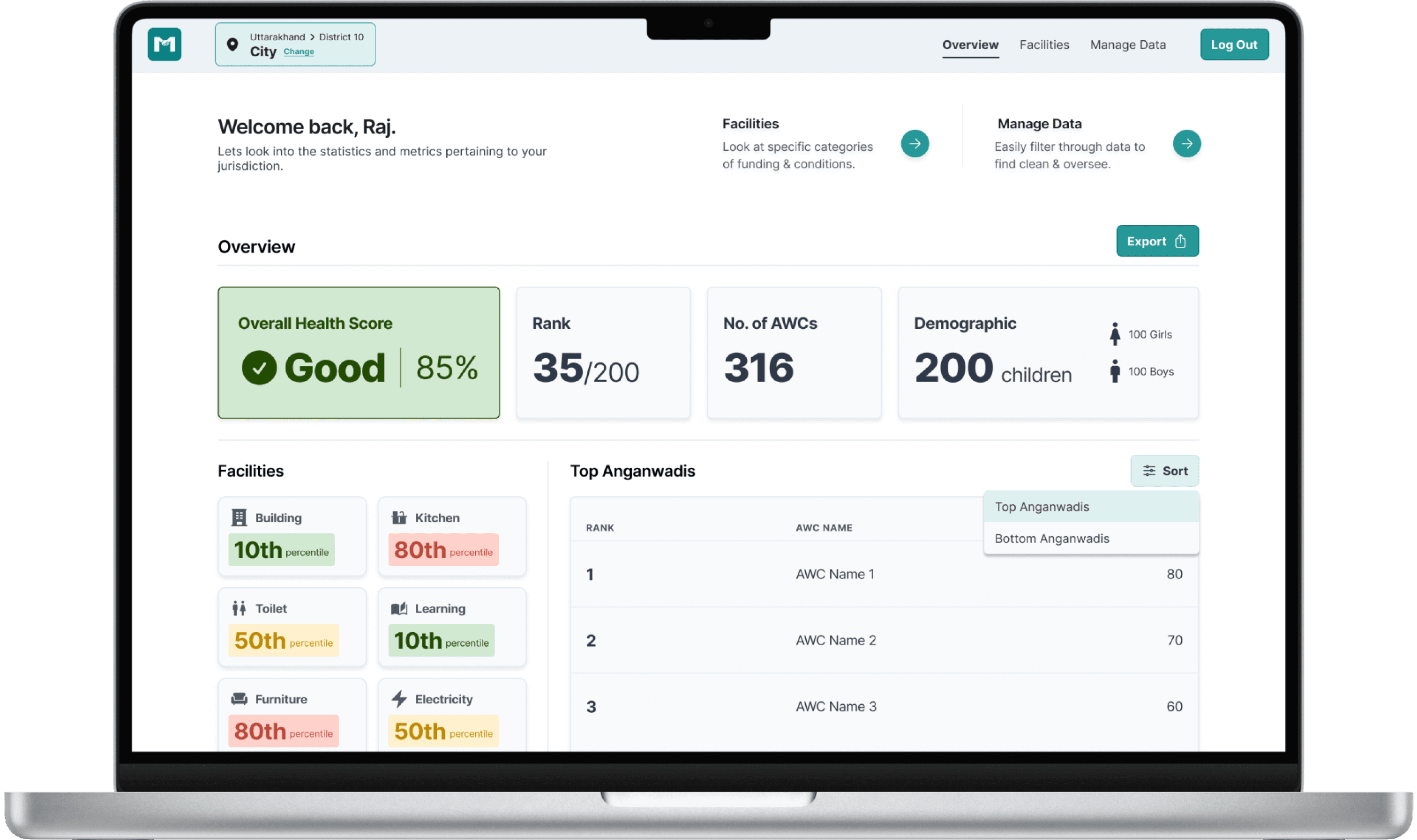

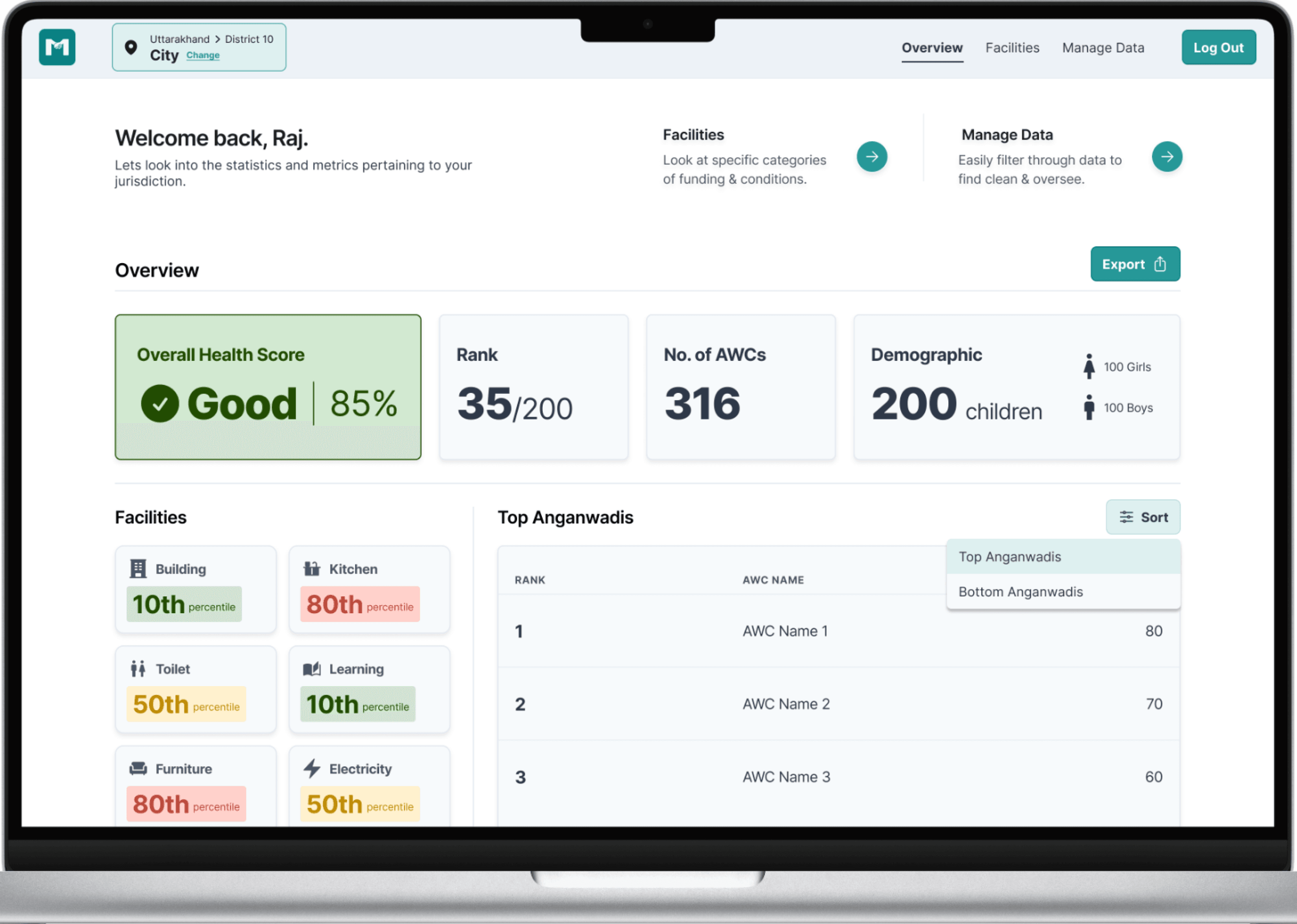

The overview acts as home for the dashboard allowing government officials to see a encompassing view of the regional preschools conditions.

Quick navigation to major pages

Table to filter schools with the

top/bottom funding scores.

Main information on

regional school conditions

School facilities scores

Quick navigation to major pages

Table to filter schools with the

top/bottom funding scores.

Main information on

regional school conditions

School facilities scores

Quick navigation to major pages

Table to filter schools with the top/bottom funding scores.

Main information on regional school conditions

School facilities scores

Quick navigation to major pages

Table to filter schools with the

top/bottom funding scores.

Main information on

regional school conditions

School facilities scores

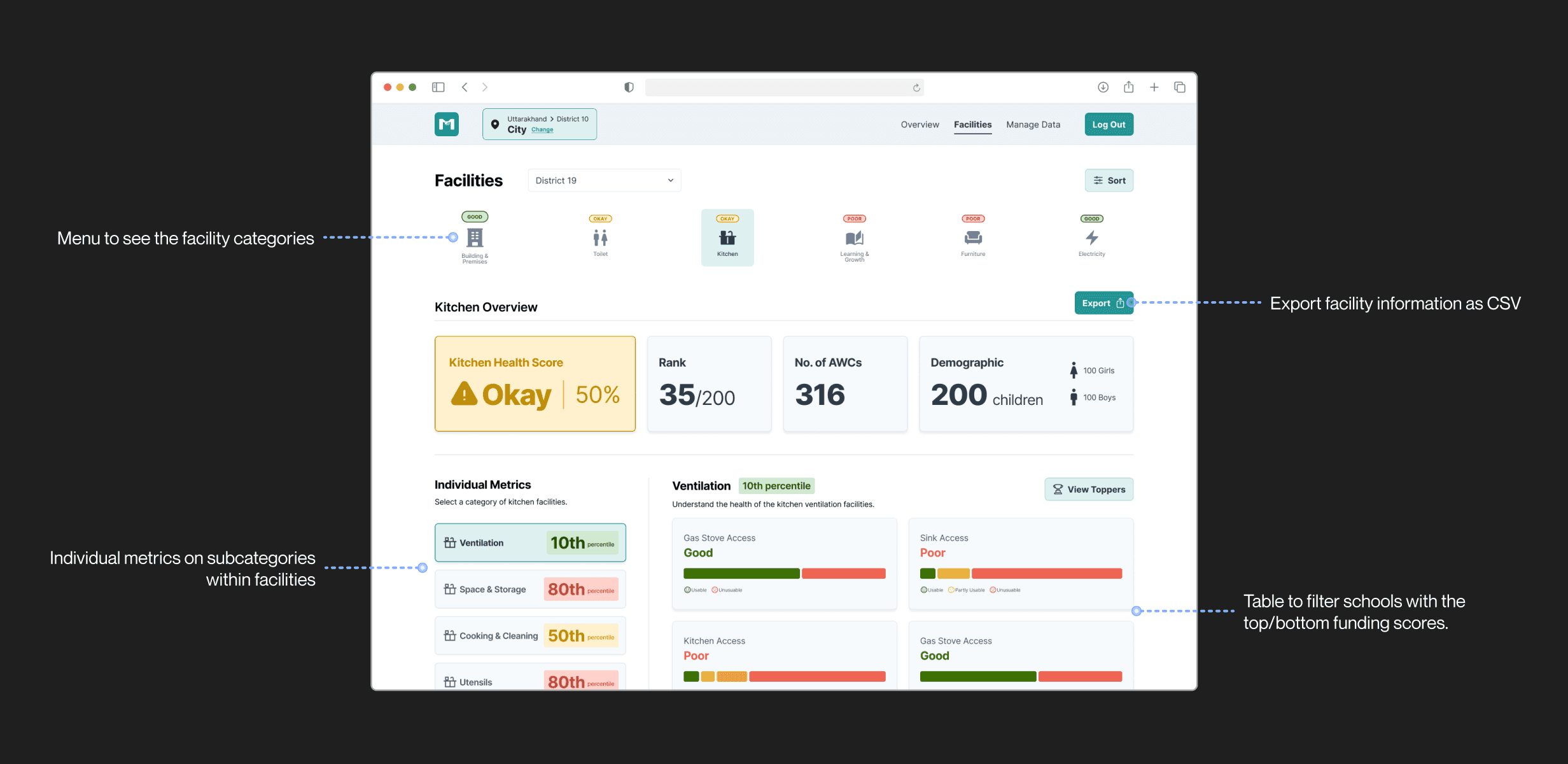

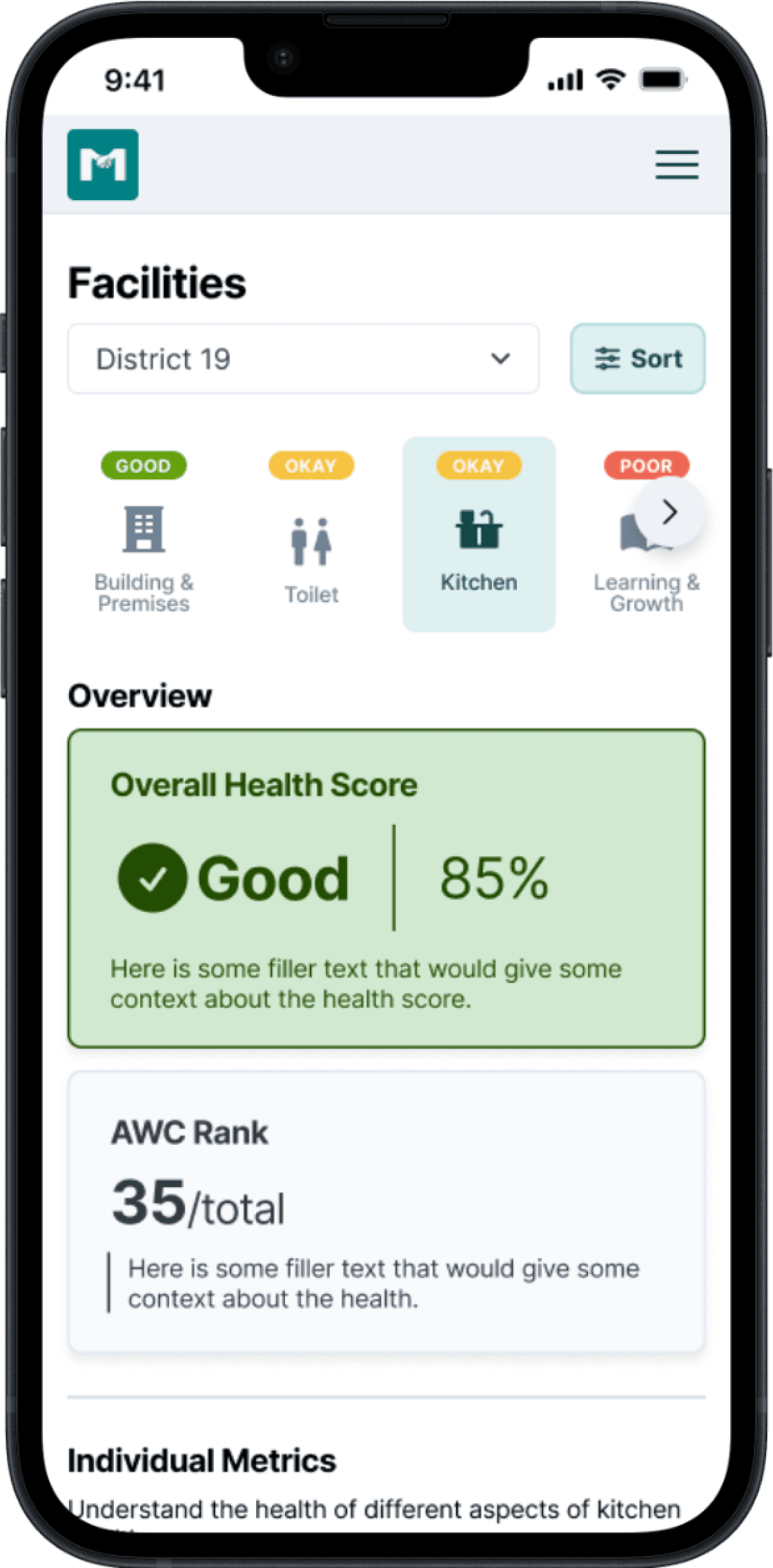

Facility Metrics

The facilities page gives a deeper view of the facilities tracked within preschools and their conditions/usability. Officials can also export these insights in the form of a CSV to view in a spreadsheet platform.

Export facility information as CSV

Table to filter schools with the

top/bottom funding scores.

Individual metrics on subcategories

within facilities

Menu to see the facility categories

Export facility information as CSV

Table to filter schools with the

top/bottom funding scores.

Individual metrics on subcategories

within facilities

Menu to see the facility categories

Export facility information as CSV

Table to filter schools with the

top/bottom funding scores.

Individual metrics on subcategories within facilities

Menu to see the facility categories

Export facility information as CSV

Table to filter schools with the

top/bottom funding scores.

Individual metrics on subcategories

within facilities

Menu to see the facility categories

Manage Data

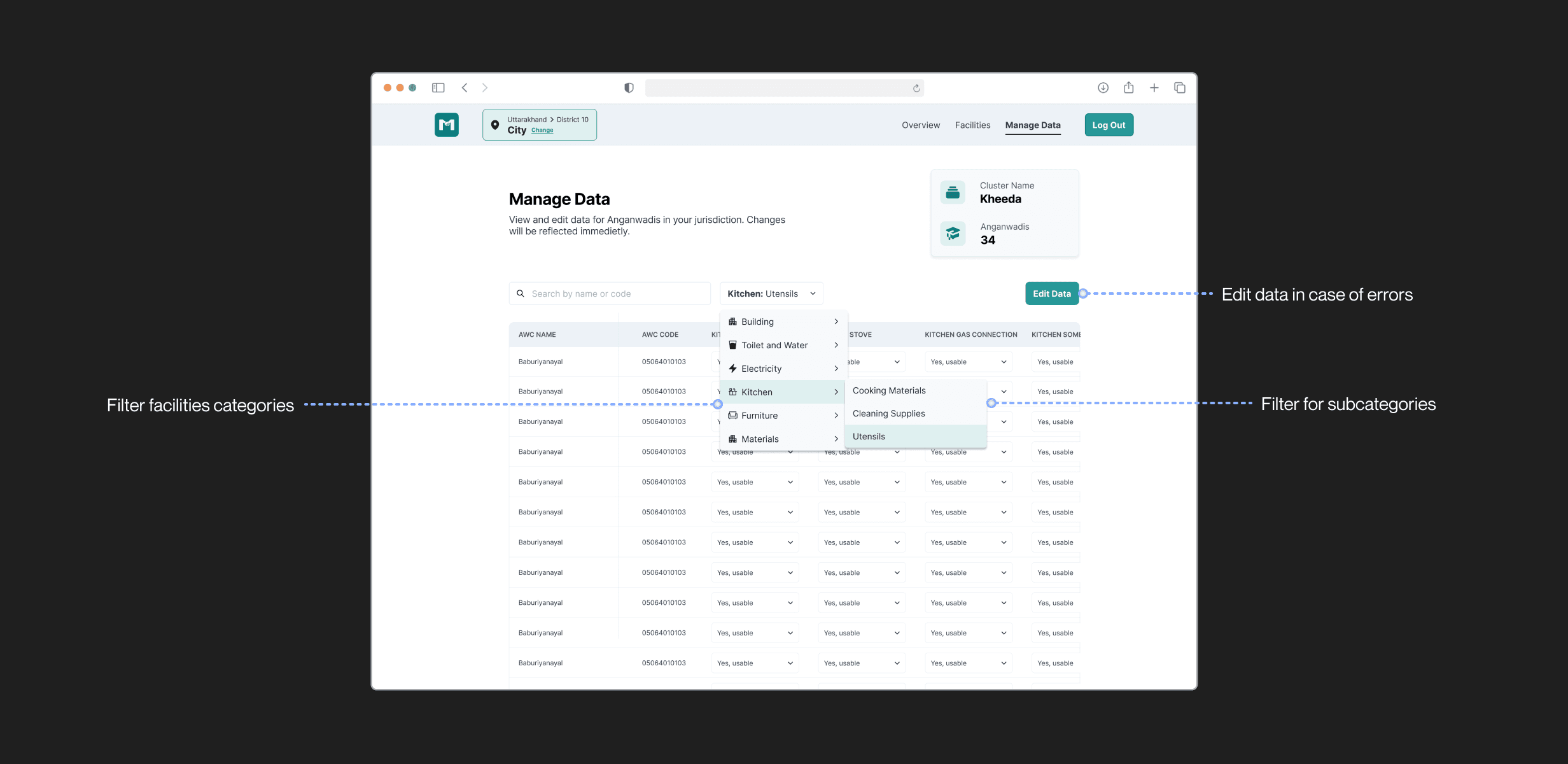

The Manage Data page is where officials can easily filter through data to find specific metrics or search through the data. They are also able to clean or correct information that needs review.

Filter facilities categories

Edit data in case of errors

Filter for subcategories

Filter facilities categories

Edit data in case of errors

Filter for subcategories

Filter facilities categories

Edit data in case of errors

Filter for subcategories

Filter facilities categories

Edit data in case of errors

Filter for subcategories

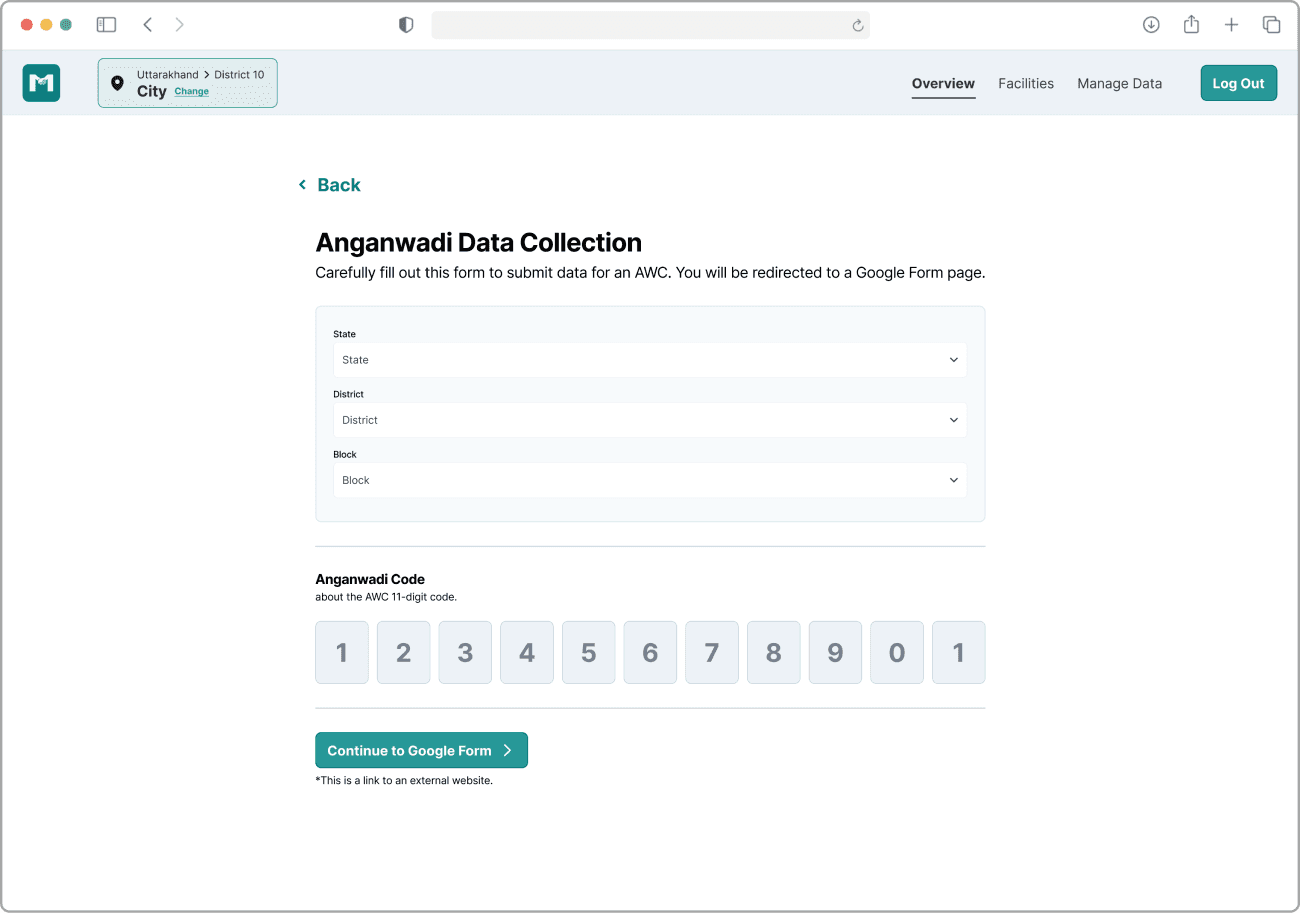

Data Collection & Authentication

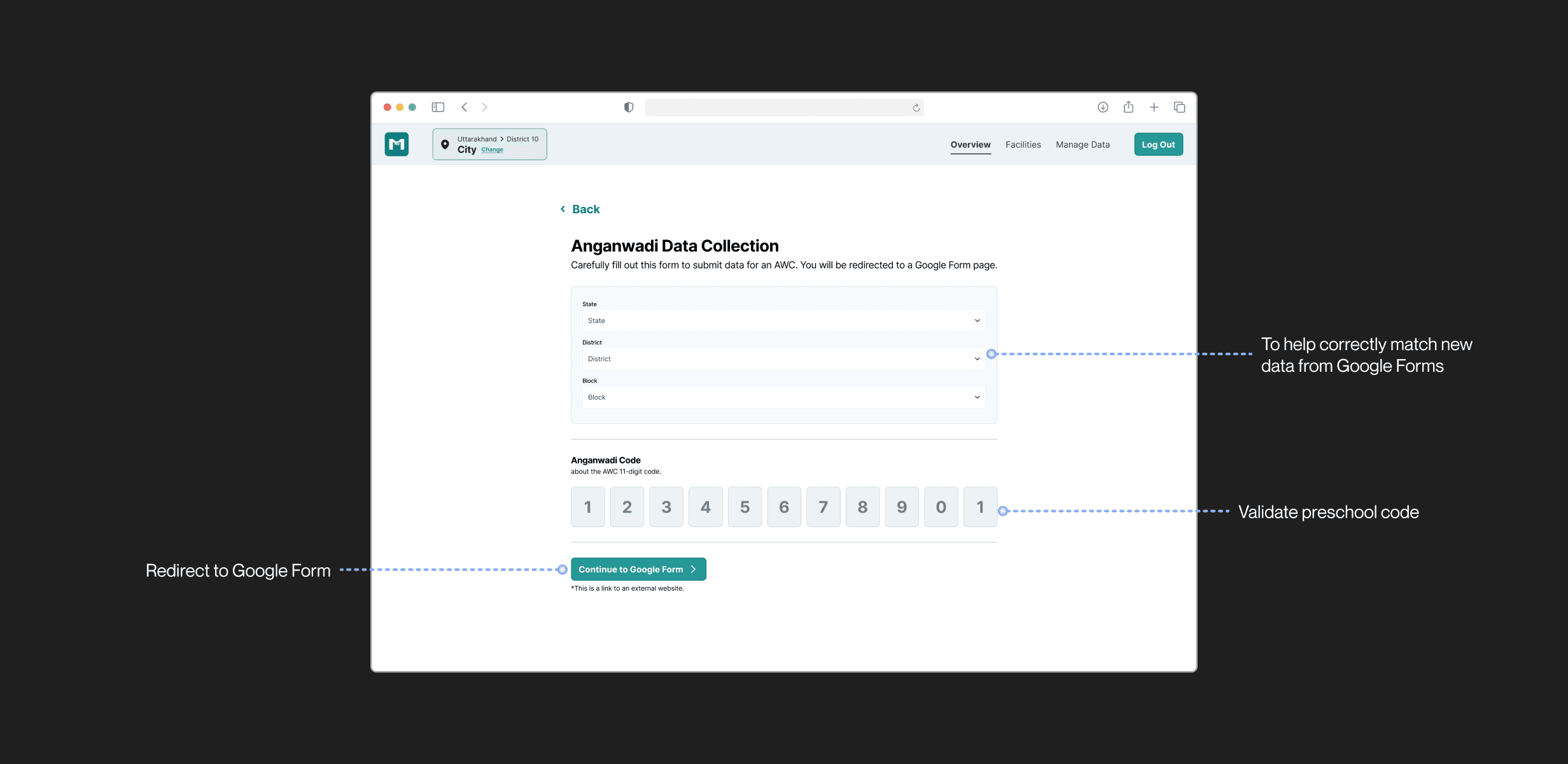

For security, data collection requires the assigned AWC number to schools to be able to validate. It also redirects to the standardized Google Form for data collection which is quicker and faster for on sight reporting.

Redirect to Google Form

To help correctly match new

data from Google Forms

Validate preschool code

Redirect to Google Form

To help correctly match new

data from Google Forms

Validate preschool code

Redirect to Google Form

To help correctly match new

data from Google Forms

Validate preschool code

Redirect to Google Form

To help correctly match new

data from Google Forms

Validate preschool code

Reflection

Designing For Social Good

A cute team bonding trip to Chicago 🌇

☝️My First Dashboard

This was one of my first live dashboard projects I had the opportunity to design. I had some in-class projects, but the real world application and impact of this project was a huge learning moment and challenge.

💥 Breaking Tradition

This was a challenging design space for me because a large part of my process is referencing current patterns and live product, but we found that our users were not always familiar with these new UI and platforms. I needed to design with a new perspective and rely heavily on our users feedback.

🏃‍♀️Fast Development

We had a very fast timeline being just a semester project. Thus the development team needed us to create a foundation design for them to work on before moving to a higher fidelity as we continued to design. It required fast sprints of iteration and close communication with our devs.
